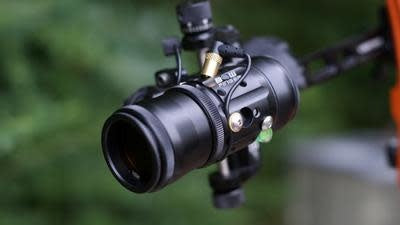

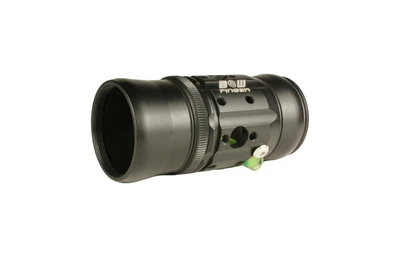

Bowfinger 20/20 30mm Scope kit - RH

Regular price $175.95 USD
Regular price $184.95 USD Sale price $175.95 USD
Sale Sold out
Shipping calculated at checkout.

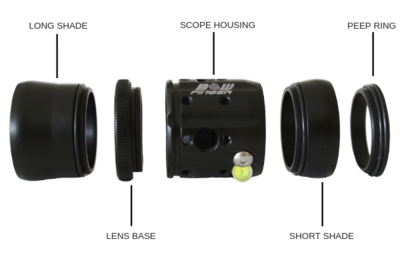

30mm Kit Includes:

  • Scope Housing
  • Lens Base
  • Short Shade
  • Long Shade
  • Peep Ring


    • Pin groove keeps pin straight and fiber behind the pin
    • Nine 8/32 tapped holes for attaching light kit: One angled to intersect center of lens for illuminating a colored dot
    • All 20/20 components are interchangeable with matching threads
    • 5/16 Mounting Slot accepts a hex or square mounting shaft
    • 8 Pin Mounting Positions

    Useful Dimensions:

    •  Short and Long Shade have an outside diameter of 1.6"
    •  Lens Diameter: 1.350"  / Max Diameter Lens: 1.355"
    •   Overall length of kit: 3.5"                                                                                  (Scope housing, lens base, long hood, short hood & peep ring)
    • Inside diameter of scope: 30mm


    **Filter Kits, Lens & Pin Sold Separately

    Weight: 2.5 oz
