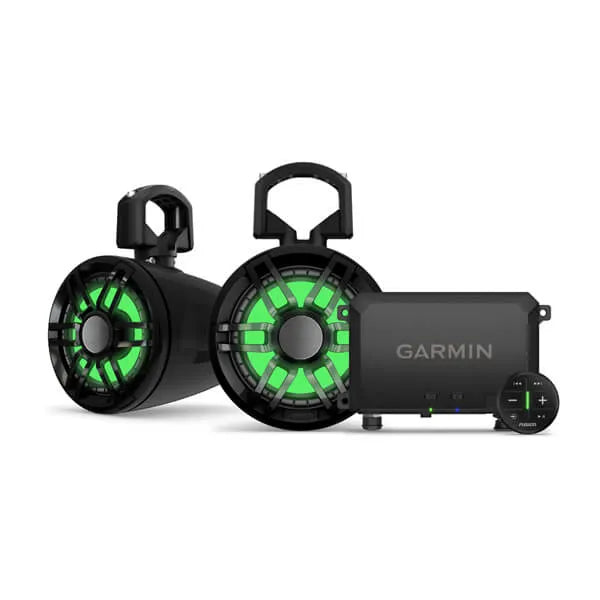

Garmin Tread Audio System | Stereo for Off-Road Vehicle

$1,199.99 USD
$1,199.99 USD
Sale Sold out
Shipping calculated at checkout.
Includes

THIS SOUND TRAVELS

The Tread audio system delivers premium quality audio that you can take on any adventure and is designed for any off-road powersport vehicle.


Options for audio sources include AM/FM, AUX and BLUETOOTH® technology.


The built-in speaker LEDs let you control and even sync colors to your music.


Enjoy the flexible setup designed for any side-by-side or other off-road vehicle.


Pairs with the Tread® app on your compatible smartphoneor Tread® device to display music and settings.


The rugged design helps withstand bumpy rides and weather conditions, so your music never skips a beat.


A wireless remote is included for convenient control.

Audio Box
Weight 997 g (2.2 lbs)
Physical Dimensions (LxWxH) 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165")
Water and dust rating IP67
Input voltage 8 to 14.4 Vdc
Current (max) 40 A
Current (muted) less than 650 mA
Operating temperature range -4° F to 158° F (-20° to 70° C)
Storage temperature range -40° F to 185° F (-40° to 85° C)
Compass safe distance 203 mm (8")
BLUETOOTH wireless range up to 10 m (30 ft)
ANT wireless range up to 10 m (30 ft)
Fuse 15 A mini-blade type
Peak power (Watts) Four 200 W per channel
RMS power (Watts) Four 100 W RMS at 14.4 Vdc input, 4 ohm
Warranty 1 year

Speakers
Weight 2.49 kg (5.5 lbs)
Physical Dimensions 177 mm x 233 mm (6.97" x 8.78")
Water and dust rating IP67
Operating temperature range 32° - 122° F (0° to 50° C)
Speaker size 6.5"
Peak power (Watts) 200 W per speaker
RMS power (Watts) 50 W
Sensitivity (1 W/1 m) 91 db
Frequency response 80 Hz - 18kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 20 - 150 W
LED lighting yes (RGB)
LED supply voltage 10.8 - 16 Vdc
LED load current @ 14.4 VDC 150 mA
Voice coil diameter 30 mm (1.18")
Cone material polypropylene (PP) cone with cloth surround
Tweeter type aluminum dome
Supported roll bar sizes 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter
Warranty 1 year
Wiring 3 m



Audio System

  • Tread Audio Box with LED controller
  • Two 6.5” XS-LED tower speakers with tube mounts
  • Wireless remote
  • Wiring
  • Documentation

Audio Box only

  • Tread Audio Box with LED controller
  • Wireless remote
  • Wiring harnesses
  • Documentation

Speakers only

  • Two 6.5” XS-LED tower speakers with tube mounts
  • Documentation

Audio System plus 2 Speakers

  • Tread Audio Box with LED controller
  • Four 6.5" XS-LED tower speakers with tube mounts
  • Wireless remote
  • Wiring
  • Documentation

Audio System plus Subwoofer

  • Tread Audio Box with LED controller
  • Two 6.5" XS-LED tower speakers with tube mounts
  • Fusion® XS series 10” 600-Watt subwoofer with RGB LED lighting (no enclosure)
  • Wireless remote
  • Wiring (tower speakers only)
  • Documentation
