Shibuya

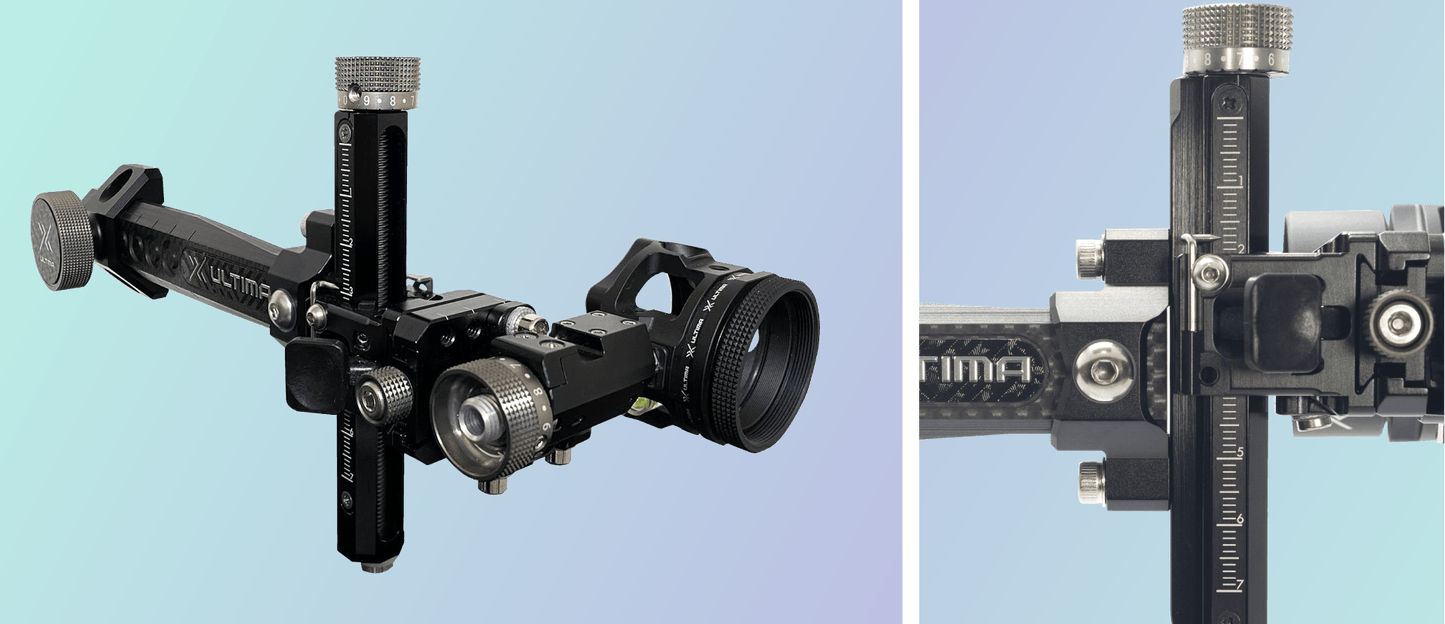

Shibuya Ultima CP Pro - 3D and Target Compound Sight

Regular price $649.99 USD
Regular price Sale price $649.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Hand
Bar Length

Polygonal Carbon Extension【Patent pending】

ULTIMA CP PRO’s carbon extension features a radical new design redefining vibration elimination. The ultimate goal of eliminating vibration through the shape of the carbon extension lead us to a fishing pole taper shape. Through it, ULTIMA CP PRO is able to eliminate over 80% of the initial excess vibration upon the shot.
※By targeting vibration not only through material, but also shape, ULTIMA CP PRO offers a shooting feel like no sight before it.

QUICK CHANGE WINDAGE

ULTIMA CP PRO includes, for the first time in ULTIMA history, a front detach block. This enables the archer to have multiple scope setups prepared with corresponding second- and third axis settings and windage, and keep the X-Lock slider in place for single-distance competitions.
The ULTIMA CP PRO detach mechanism clamps onto the X-Lock elevation block with two “teeth” featuring polygonal dovetails. The result is a rock-solid connection that will not rattle loose no matter the amount of bow vibration, in a more compact construction than ever before. Tool-less, rock-solid and reliable, leaving the archer with peace of mind to focus on competition!

EXPANDED WINDAGE RANGE

ULTIMA CP PRO builds on the Integrated Offset Mount feature found in the ULTIMA CPXII sights, adding a third offset position. This expands the windage adjustment range by 30%, to fit a large variety of bow riser designs and scope sizes. By integrating the windage offset right at the elevation slider, ULTIMA CP PRO eliminates the need for additional offset brackets, and keeps the scope closer to the windage unit, eliminating excess torque!

ADVANCED LOCK MECHANISM

ULTIMA CP PRO features a brand-new mounting mechanism to achieve a more secure lock than ever. By increasing the knob’s diameter, and maximizing the contact area with the carbon extension, ULTIMA CP PRO’s mount achieves a rattle-proof lock with less effort required than ever. Never worry about the knob coming loose again with this simple yet secure mounting system!

SIGHT SCALE PLATES

Both sides of ULTIMA CP PRO’s elevation bar feature recessed metal sight scale plates. Each ULTIMA CP PRO includes 8 double-sided sight scale plates, for a total of 16 scale options. Printed sight tapes can be used on the blank plate supplied.

MAGNIFIER COMPATIBLE

The Scale Magnifier mounts to the flat shelf indicator’s groove, enabling higher precision elevation adjustments than ever.
(sold separately)

SPEC TABLE

ELEVATION TYPE 400
EXTENSION TYPE 6"Carbon 9"Carbon
MASS WEIGHT 239g 265g
APERTURE DISTANCE (APD) MAX 191mm
MIN 131mm
MAX 265mm
MIN 205mm
ELEVATION ADJUSTMENT MODEL Screw Drive with No-Lock Quick Adjust Function
LENGTH 100mm (approx.4")
ADJUSTABLE RANGE approx.73mm
ADJUSTMENT INCREMENTS 1/24" per revolution (approx.1mm)
1/480" per click (approx.0.05mm)
TILT ADJUSTMENT adjustable
WINDAGE ADJUSTABLE RANGE approx.14mm
ADJUSTMENT INCREMENTS 1/24"  per revolution (approx.1mm)
1/480" per click (approx.0.05mm)
COMPATIBLE SCOPES No.10-32 threaded scope rods
2ND、3RD AXIS adjustable
EXTENSION LENGTH 157mm (approx.6") 225mm (approx.9")
ADJUSTABLE RANGE 2.4" (approx.60mm)
ADJUSTMENT INCREMENTS 0.47” (approx.12mm)
MATERIAL ELEVATION 6000 series aluminum alloy
WINDAGE UNIT 6000 series aluminum alloy
EXTENSION Carbon Fiber
COLORS Blak, Blue, Red, Gunmetal
RH/LH available
RELEASE DATE 2021
INCLUDED ACCESSORIES Soft Sight Case
No.10-24 mount screws
No.10-32 hex nut, adjustment washers
Hex Wrenches 1.5mm/2mm/3mm
Standard sight scale plate
Laser-etched sight charts x 8 (15 custom scales + blank plate)
Blank tape
Instructions Sheet
